Chapter Seven

Reading the Metal

A dent is not merely a shape. It is a system of forces that has come to rest in a damaged arrangement. That sentence is worth learning, because it changes how you approach everything that follows. This chapter is short because its point is single: before a repair is a set of actions, it is an act of interpretation. The technician who cannot say where his force is going has no way to decide how much of it to apply.

7.1The system, not the shape

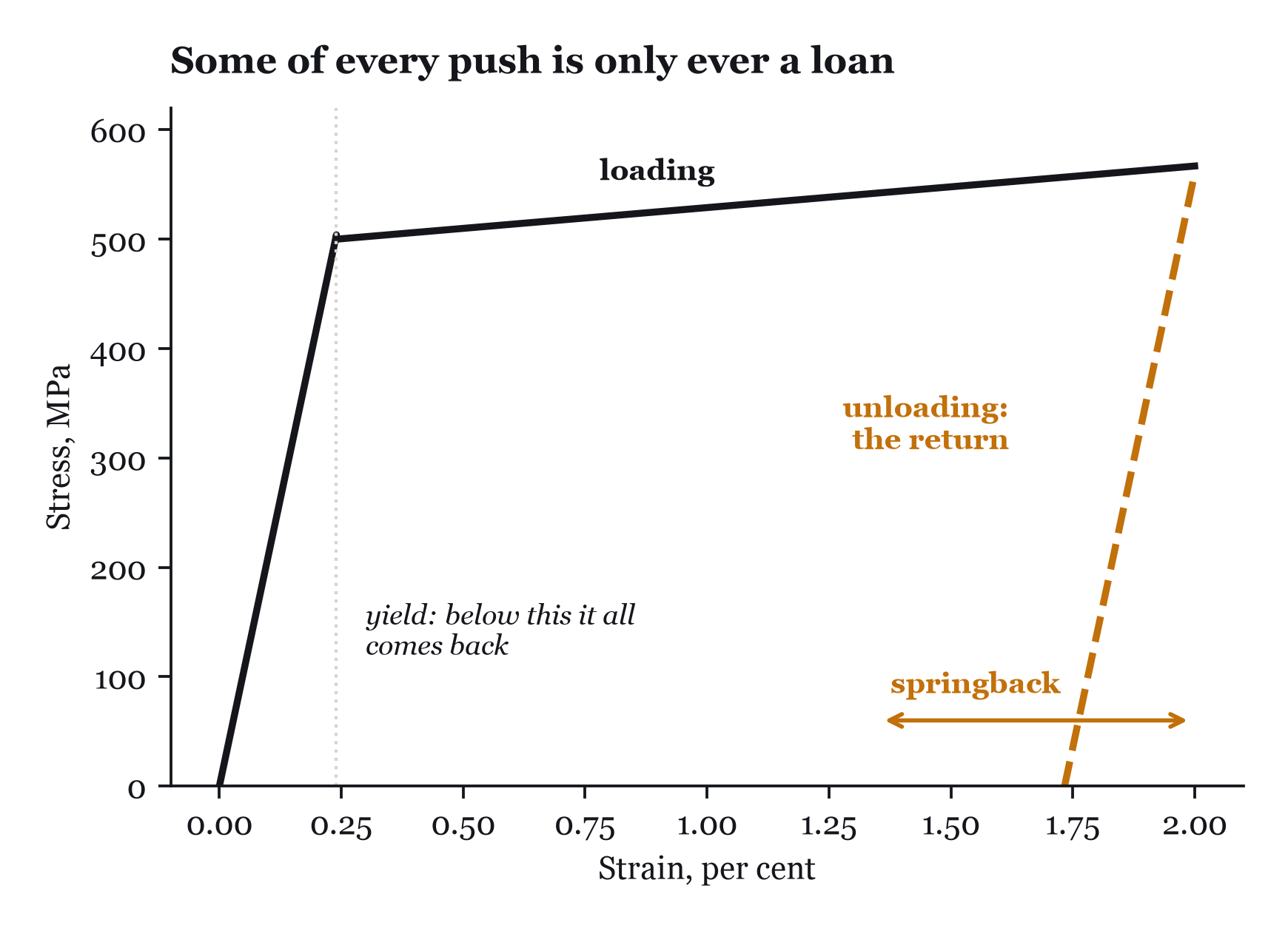

If you see only the low, you will attack only the low. If you see the system, you begin asking what is holding the low where it is. Metal pushes back. Tools bend. Braces flex. Paint limits movement. Curvature distributes stress. Heat changes behaviour. Your own body changes the angle of effort. Every repair is therefore a conversation between several materials at once, and the first behaviour you must learn to hear is reflex tension. You push the panel. It moves. Then some portion returns when you release pressure. Part of the movement was elastic: it borrowed position from the panel and gave it back. Another portion was plastic, and remained. The technician must learn the difference by sight and by feel.

7.2What comes back, and why

How much comes back is not a mystery either, and the rule is worth knowing, because it explains as physics something the trade has always described as temperament. Springback is governed by the ratio of the metal's strength to its stiffness: its yield stress divided by its elastic modulus. And it falls as the panel gets thicker.¹ Notice that strength alone does not decide it. Two panels of equal strength behave differently if their stiffness differs, and that is precisely where aluminium parts company with steel. Aluminium's elastic modulus is roughly a third of steel's, so an aluminium panel of comparable strength springs back about three times as far.² The technicians who say aluminium fights them are not imagining it and are not short of skill. They are working against a material constant, and the factor is close to three.

The technicians who say aluminium fights them are not imagining it. They are working against a material constant, and the factor is close to three.

7.3Not the sheet that left the mill

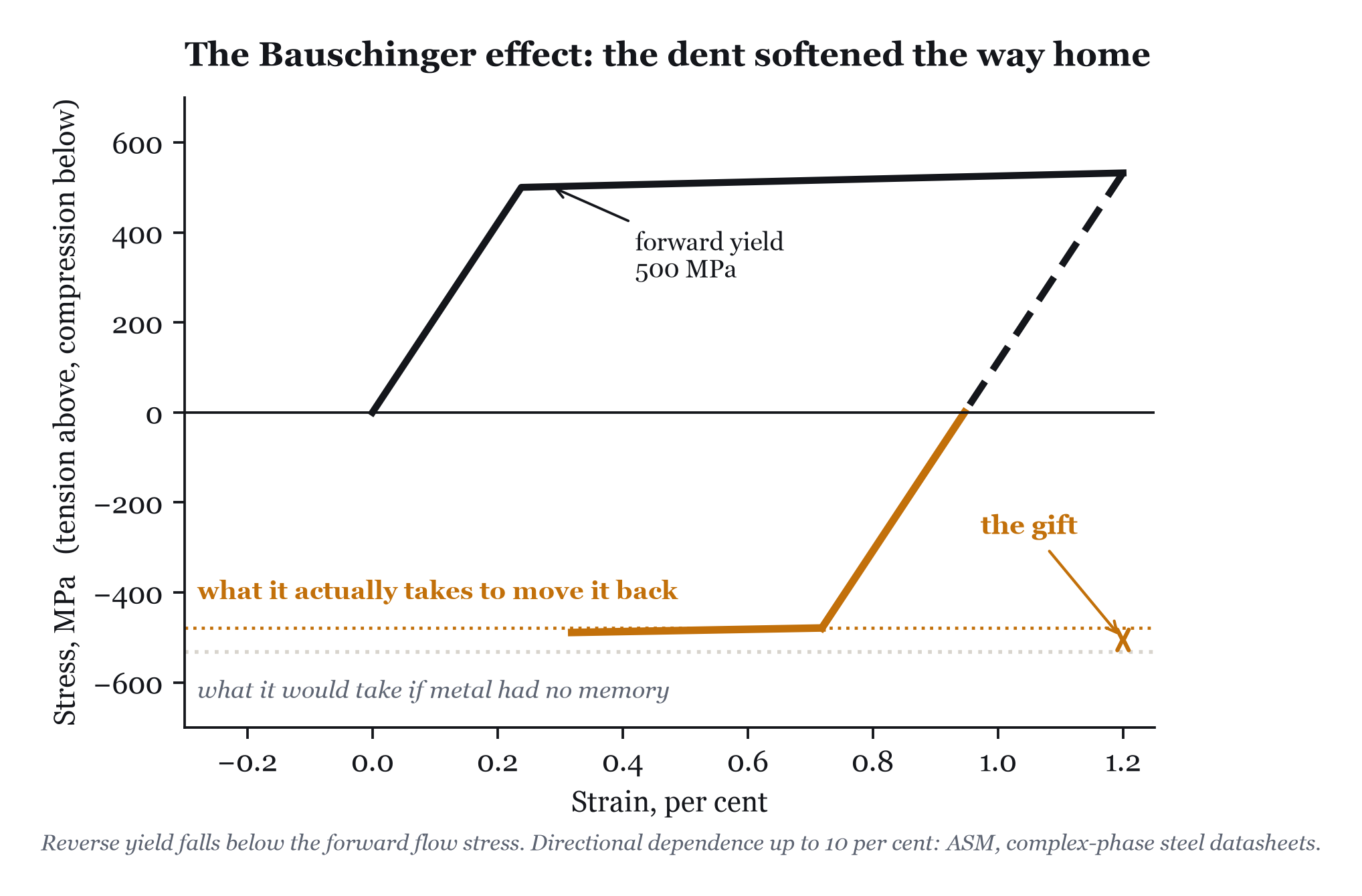

There is a second thing worth knowing, and it changes what you believe you are touching. The panel in front of you is not the sheet that left the mill. It was hardened once when it was stamped, and hardened again in the paint oven, and in a modern body panel that second step is not an accident of the process. It is the point of it. Steels are specified whose yield strength rises during the paint bake precisely so the finished panel will resist denting. The effect is named, measured, and ordered by the tonne.³ The strengthening from forming and the strengthening from baking add together.⁴ So the metal you are trying to move was made harder on purpose, twice, by people whose whole object was to defeat the shopping cart. The property that defeats the cart is the one meeting your tip. But the news is not all against you. Metal that has been bent one way yields more easily when it is bent back. The asymmetry is called the Bauschinger effect, and it describes your situation exactly: the impact bent the panel one way, and you are bending it the other.⁵ The damage has softened the road home. That is the nearest thing to a gift this trade offers, and most of us have felt it for years without being told it had a name.

7.4Tension: the largest lever

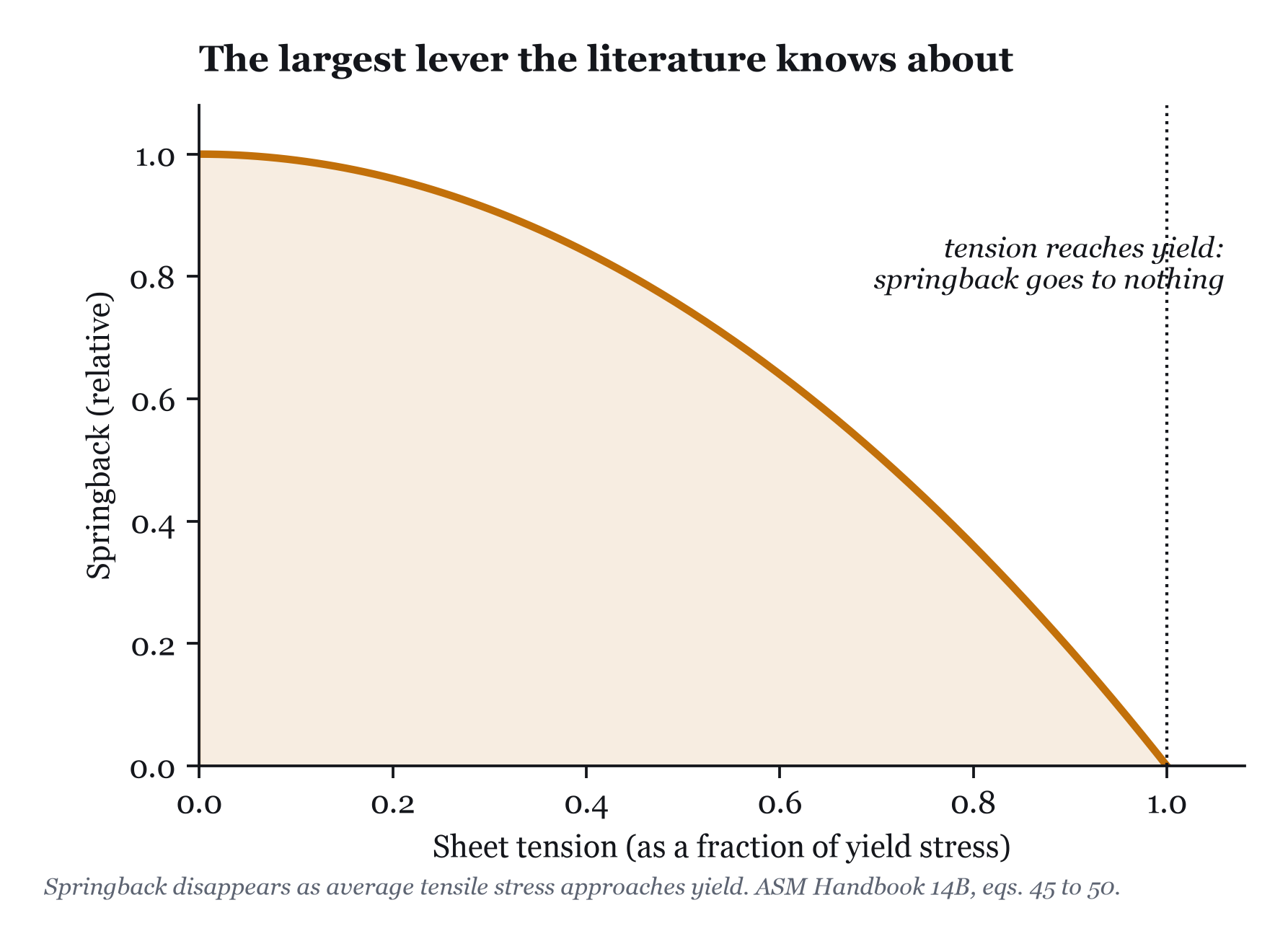

One more finding belongs here, because it is the largest lever the engineering literature knows about and our trade barely mentions it. Springback can be reduced, and in the limiting case removed, by holding the sheet in tension while it is bent. Tension flattens the stress gradient through the thickness, which lowers the bending moment, which is what drives the elastic return. As the average tensile stress approaches the yield stress, springback approaches nothing at all.⁶ Most industrial schemes for controlling springback rest on that one principle.⁷ It is not free. Push tension too far and the sheet splits instead, so stamping plants spend their working lives walking a line between a part that will not hold its shape and a part that tears.⁸ Read that sentence again and ask whether it sounds familiar. We walk the same line with a rod instead of a press: between metal that will not stay where we put it, and metal we have stretched past saving. The industry keeps a second answer in reserve as well, which is to stop fighting the return and design for it: shape the tool so the part arrives correct after it has sprung back.⁹ Whether that can be done deliberately at the panel, rather than by accident, is a question I would rather leave open than answer badly.

7.5Utensil elasticity

The tool behaves in the same way. A rod under load bends, and I call this utensil elasticity. When you press on a panel, some of your force moves the metal and some is stored in the tool. If the metal suddenly yields or the tip slips, the tool can release that stored energy all at once. This is why a repair can jump farther than you expected even though your hand did not seem to move much. The panel and the tool are arguing with one another, and the experienced technician learns to hear both sides. It also explains why the same push never truly exists twice. Change the alloy, the tool length, the diameter, the tip, the fulcrum, the access point, the panel curvature, or the hand position, and you have changed the mechanical event.

That is why I am suspicious when someone says just push harder. Harder is not a diagnosis. Sometimes more force is exactly right. Sometimes more force is the quickest way to create a high spot. The difference between those two situations is never settled by effort. It is settled by knowing where the force is going: into permanent movement, into elastic movement that will be returned to you, or into a tool that is quietly storing it up to spend at a moment of its own choosing. A dent is a system at rest. The panel and the tool each take their share of everything you apply, and only some of what you spend ends up where you wanted it. Once you understand that, leverage stops feeling mystical. Notice what the measured facts have done to the old advice. They have not replaced reading the panel. They have told you what you are reading: a sheet stiffer than it left the mill, softer coming back than it was going in, returning in proportion to its strength over its stiffness, and quieter under tension than without it.
